problem bottle with liquid inside

General questions about Indigo, the scene format, rendering etc...
Post Reply
4 posts • Page 1 of 1
User avatar
SCHMUMS
Posts: 88
Joined: Sat Oct 16, 2010 1:08 am
Location: Paris
Contact:

problem bottle with liquid inside

Post by SCHMUMS » Wed Mar 13, 2013 11:02 am

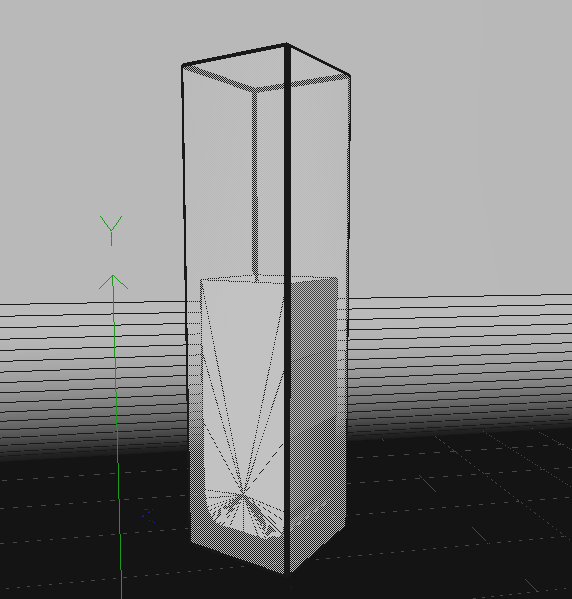

I wish I make a container of liquid.

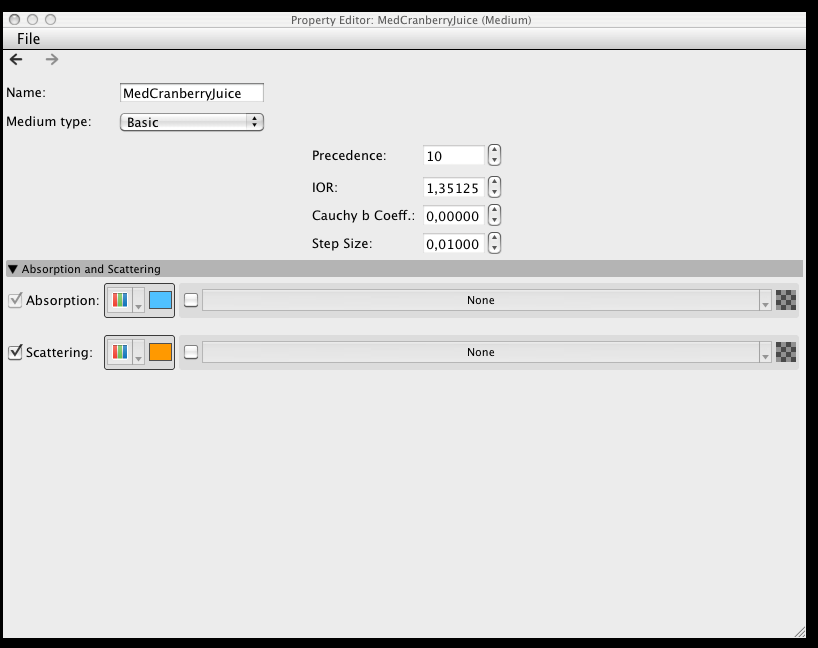

When I apply my liquid + glass materials (see material parameters), the liquid appears black. But I checked the normals, everything seems correct.
would anyone have an idea?
I attached the test file.
Attachments
Capture d’écran 2013-03-13 à 00.32.27.png
Capture d’écran 2013-03-13 à 00.32.10.png
Capture d’écran 2013-03-13 à 00.01.51.png
bottle with test.igs
(14.48 KiB) Downloaded 395 times
Capture d’écran 2013-03-12 à 20.59.17.png
C4DR11.5-R12 user-Quad core Intel Xenon 2X2,26 GHZ
Zbrush 4

User avatar
Zom-B
1st Place 100
Posts: 4701
Joined: Tue Jul 04, 2006 4:18 pm
Location: ´'`\_(ò_Ó)_/´'`
Contact:

Re: problem bottle with liquid inside

Post by Zom-B » Wed Mar 13, 2013 1:51 pm

check page 115 of the "Indigo Technical Reference.pdf" inside your Indigo installation folder :)
polygonmanufaktur.de

User avatar
galinette
1st Place Winner
Posts: 923
Joined: Sat Jan 09, 2010 1:39 am
Location: Nantes, France
Contact:

Re: problem bottle with liquid inside

Post by galinette » Wed Mar 13, 2013 8:24 pm

Maybe your juice medium is absorbing too much, or maybe the object dimensions are too large. Remember that Indigo unit is meters, and that 2m thick of cranberry juice looks black

Etienne
Eclat-Digital Research
http://www.eclat-digital.com

User avatar
Zom-B
1st Place 100
Posts: 4701
Joined: Tue Jul 04, 2006 4:18 pm
Location: ´'`\_(ò_Ó)_/´'`
Contact:

Re: problem bottle with liquid inside

Post by Zom-B » Wed Mar 13, 2013 8:28 pm

For sure the glass Precedence value must be at least 1 point higher then the one of the fluid, otherwise strange stuff can happen ;)
polygonmanufaktur.de
