Alpha map

ciccio · Post by **ciccio** » Thu May 31, 2007 10:31 am

Hello to all, I to be new of the forum of indigo. I to ask one gentility like using alpha map (clip mapping) in indigo?

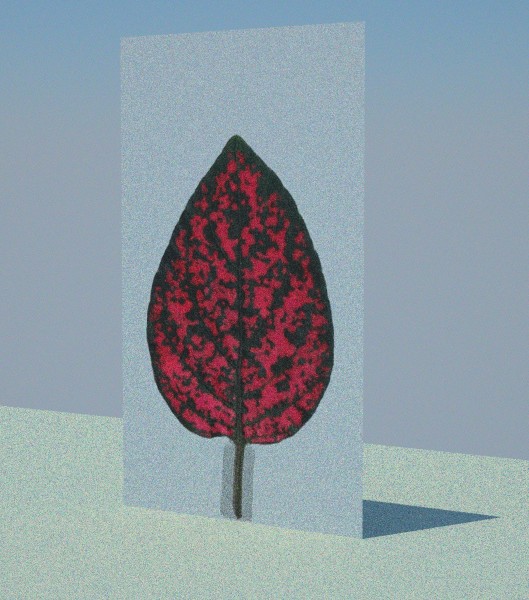

example the leaf

I use Sketchup

Zom-B · Post by **Zom-B** » Thu May 31, 2007 7:12 pm

Welcome to the Forum Bruce Lee!

Take a look at this tutorial,
consider next time to post your threads in Sub Forums they fit to

Here is the SketchUp sub forum...

ciccio · Post by **ciccio** » Fri Jun 01, 2007 12:25 am

tank very much ZomB

Grazie!

ciccio · Post by **ciccio** » Fri Jun 01, 2007 12:37 am

to be tutorial for blender. to be the same thing SU - Blender?

manitwo · Post by **manitwo** » Fri Jun 01, 2007 12:46 am

*moved*

Kram1032 · Post by **Kram1032** » Fri Jun 01, 2007 2:20 am

*moved*?

ciccio · Post by **ciccio** » Fri Jun 01, 2007 2:24 am

Kram1032 · Post by **Kram1032** » Fri Jun 01, 2007 2:27 am

Sorry, I can't answer the question, as I don't use Sketchup myself, but
*moved*

Has this been in an other forum, before?

Whaat · Post by **Whaat** » Fri Jun 01, 2007 2:30 am

Welcome, ciccio!

To use Alpha Maps in SkIndigo 0.7.1, you need to create two materials in Sketchup.
- Material #1 ("Leaf") has the leaf texture applied to it.
- Material #2 has the alpha map applied to it.

- Set Material #2 type to 'Blend'
In the 'Blend' settings:
- Set Material A to "None" (will replace the black areas of the alpha map)
- Set Material B to "Leaf" (will replace the white areas of the alpha map)

Use the Sketchup Paint Bucket to paint your faces with Material #2 (the Blend Material)

Make sure you are not using version 0.6. It does not support alpha maps.
Attached is a Sketchup file showing an example of using an alpha map to create grass.

Whaat

ciccio · Post by **ciccio** » Fri Jun 01, 2007 4:15 am

tank very much Whaat
Grazie!

A_Minima · Post by **A_Minima** » Fri Jun 01, 2007 4:20 am

Not the thread subject but studying the Whaat's file : are you a French-speaking person Whaat ? (regarding to your maps name for the grass map into the SU material edit menu).

manitwo · Post by **manitwo** » Fri Jun 01, 2007 4:38 am

Kram1032 wrote:
Sorry, I can't answer the question, as I don't use Sketchup myself, but
*moved*

Has this been in an other forum, before?

my god, please think before posting! (if you investigate a few second in thinking and rereading you will be able to answer it yourself)

Whaat · Post by **Whaat** » Fri Jun 01, 2007 4:39 am

A_Minima wrote:Not the thread subject but studying the Whaat's file : are you a French-speaking person Whaat ? (regarding to your maps name for the grass map into the SU material edit menu).

Sorry, I don't speak any French except for the few words I have picked up living in a bi-lingual country. I have some French connections, though. My brother married a girl from the west coast of France and my parents just got back from a vacation in France. I downloaded the textures and never changed the names so that's why they are French.

ciccio · Post by **ciccio** » Sat Jun 09, 2007 11:21 pm

Ok Grazie!!! Thanks of the councils
