pxl666 · Post by **pxl666** » Wed Jun 04, 2008 10:38 pm

big thxx BbB!! as always!

pxl666 · Post by **pxl666** » Wed Jun 04, 2008 11:06 pm

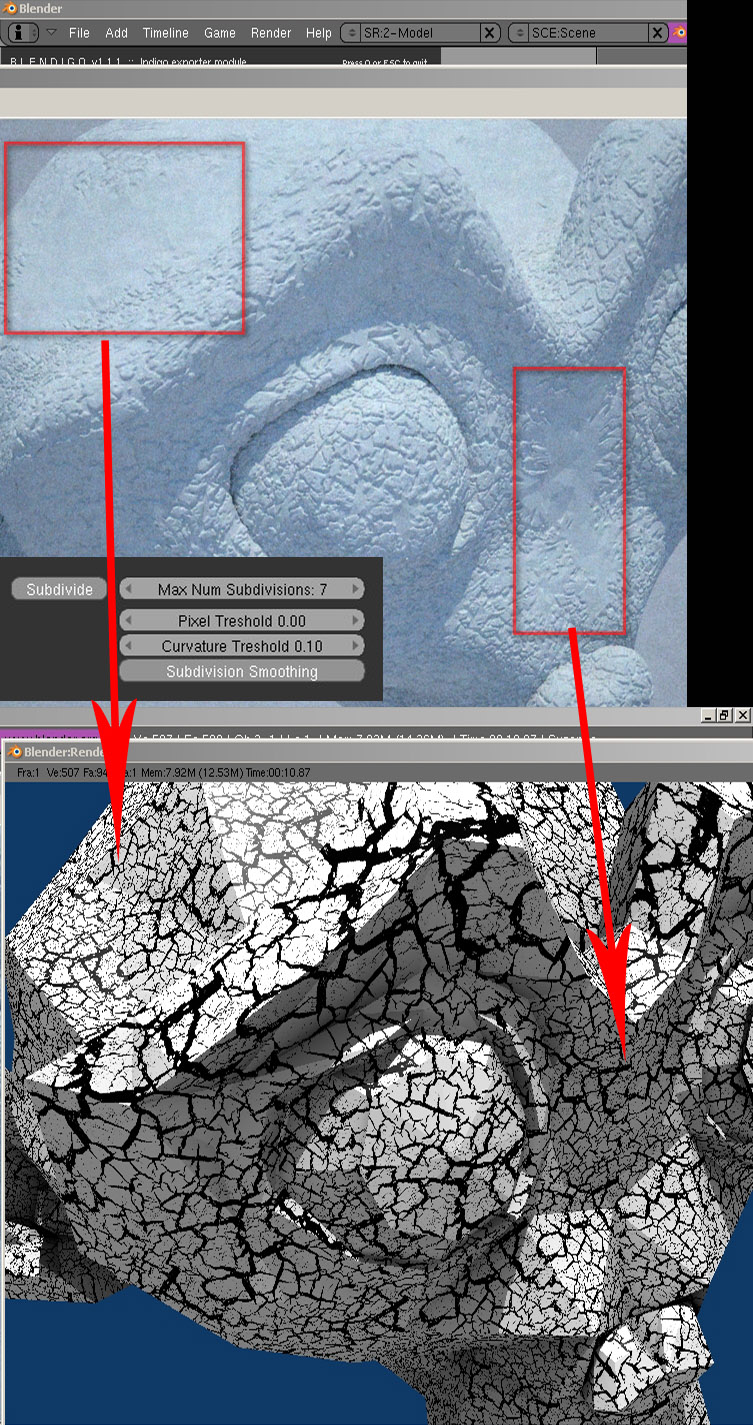

hmm
anybody has any idea if this is blender related issue? or my model is messed up? or maybe subdiv settings?

cheers!

drBouvierLeduc · Post by **drBouvierLeduc** » Wed Jun 04, 2008 11:21 pm

Try with curvature treshold =0.

BbB · Post by **BbB** » Wed Jun 04, 2008 11:23 pm

Didn't Ono say -1 in this case?
I had the same problem with a grassy hill that became bald at the top. -1 fixed it for me.

pxl666 · Post by **pxl666** » Wed Jun 04, 2008 11:26 pm

okay friends - so this is related to the way indigo treats mesh?

ouups - blendigo wont allow to set it lower than 0 (is my ver outdated?)
could it also be possible to set more than 10 lvls of sdivision?

BbB · Post by **BbB** » Wed Jun 04, 2008 11:28 pm

I don't know about Blendigo, I did it in the XML when it happened to me. Try 0 and see what happens.

pxl666 · Post by **pxl666** » Wed Jun 04, 2008 11:34 pm

drBouvierLeduc wrote:Try with curvature treshold =0.

yepp - zero helped - thx dr!!!

delic · Post by **delic** » Thu Jun 05, 2008 1:30 am

Thx SmartDen !

Displace and subdiv work fine for me on 2.46.

aleksandera · Post by **aleksandera** » Thu Jun 05, 2008 1:34 am

OK, I have problem with displacement.

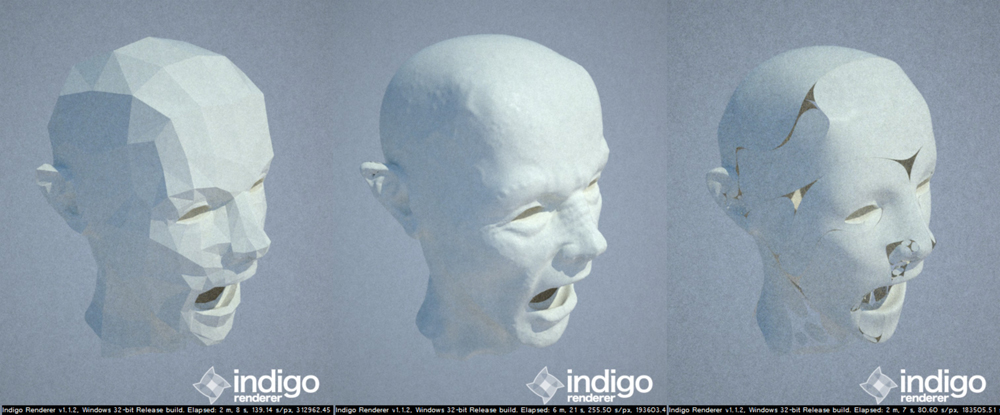

The first picture is solid mesh only,
the second is Blender's displace modifier,
and the third is Indigo displacement.
I have set the subdivisiont to 5,
and aded a png displacement map.

What em I doing wrong?

Kram1032 · Post by **Kram1032** » Thu Jun 05, 2008 1:38 am

It's a known bug which will be corrected in the coming releases...

btw: YAY at Blendigo1.1.1

Post by **OnoSendai** » Thu Jun 05, 2008 1:41 am

Kram: It's a known bug? care to fill me in?

Kram1032 · Post by **Kram1032** » Thu Jun 05, 2008 1:45 am

Oh, I thought, it was that normal thingy with displacement, which also caused that cube to explode?

So it isn't?

Sry, then... SO it's unknown xD

Post by **OnoSendai** » Thu Jun 05, 2008 1:55 am

I think what it is is a non fully-connected mesh, resulting in boundaries. The boundaries get 'pulled in' due to the smoothing process of the subdivision.

aleksandera · Post by **aleksandera** » Thu Jun 05, 2008 1:57 am

It is fully connected mesh.
Otherwise it wouldn't work with displace
modifier.

Post by **OnoSendai** » Thu Jun 05, 2008 2:01 am

Ok. I guess it's not being exported as a fully connected mesh.
