Some questions about the Indigo.

victorphellipe · Post by **victorphellipe** » Sat Nov 29, 2008 10:09 am

Hi! I'm a Blender User and I have a couple of questions!
What is the relation between the Indigo, the video card and the Processor?
I saw, some time ago, the Indigo used more the video card than the processor. It's true?
And the Sun... Can I reduce her Energy?
I'm making a scene and I wanna a blue ilumination. But, if a let the Sun with 70Âº the Sunlight is too strong. And if I let the sun with +/- 30Âº the ilumination is too Dusk. Any ideas?

Thanks!

PureSpider · Post by **PureSpider** » Sat Nov 29, 2008 10:17 am

What is the relation between the Indigo, the video card and the Processor?
I saw, some time ago, the Indigo used more the video card than the processor. It's true?

Nope, Indigo only uses the CPU

And the Sun... Can I reduce her Energy?
I'm making a scene and I wanna a blue ilumination. But, if a let the Sun with 70Âº the Sunlight is too strong. And if I let the sun with +/- 30Âº the ilumination is too Dusk.

Didn't really get what you meant with the Â°... the height of the sun?
You actually can change the light emitted by the sun by changing the turbidity

Blue illumination, however, is not possible, use a spherical mesh emitter with enough power and far enough away from your scene for that purpose...

victorphellipe · Post by **victorphellipe** » Sat Nov 29, 2008 12:50 pm

Oh man! I apologize. The Âº is used in degrees, here in Brazil!
I refer blue ilumination like a 12 o' clock ilumination... But I Understand what you say.

So... If I increase the turbidity the Sun power will down and the Dust in the Sky goes up?
I'm sorry for my English!

Thanks!

PureSpider · Post by **PureSpider** » Sat Nov 29, 2008 9:20 pm

No, it's the other way round (iirc)
By turning the turbidity up the sun gets brighter, so turning it down will make the sun darker

Just do 1 or 2 testrenders to see how it actually changes your scene

Kram1032 · Post by **Kram1032** » Sat Nov 29, 2008 11:13 pm

Wrong.
Turbidity changes, how much light gets scattered around the sky.
Turbidity 0 means, the SKY is black (-> dark) but the sun has actually MORE strenght. The light is focused on (more or less) a single point, while with higher turbidity rates, it gets scattered over the whole sky, so the light gets more diffuse.
Though, the model isn't meant to be used with non-earthlike values... Don't go beyond (what was the value?) 6 (I think), which means a highly polluted air. Clear sky is ~ 2.

At turbidity 20 for instance (tried that already), the sky turns all green...
Light is (not REALLY noticably) more diffuse but it's hardly possible to find a matching whitepoint.
I guess, turbidity defines two things: which wavelenghts of and how strong light gets scattered... So, turbidity inf would mean a perfectly diffuse grey sky. (Even at night, the light is everywhere)

What you can do instead (both changing brightness and, even if highly unreal, colour) to use Layerlight. Sun (or any background light) currently always is on Layer 0.

Guessing, that 0Â° and 180Â° means horizon, I'd say, noon ("perfect" noon, as only seen on a single spot per day, somewhere between the tropics of Cancer and Capricorn...) is at 90Â°.

Do NOT use angles beyond 180Â° or before 0Â°, because the sky model also isn't realistic for night situations. For example, if you put the sun into the nadir (270Â°/-90Â°), you'll get a deep purple sky and not a more or less black one.

victorphellipe · Post by **victorphellipe** » Sun Nov 30, 2008 2:38 am

Thanks!
I feel weird PureSpider say that the higher the value, the stronger would be the Sun.
The LayerLight only avaible in what version of Indigo? I use the stable version (1.0.9).

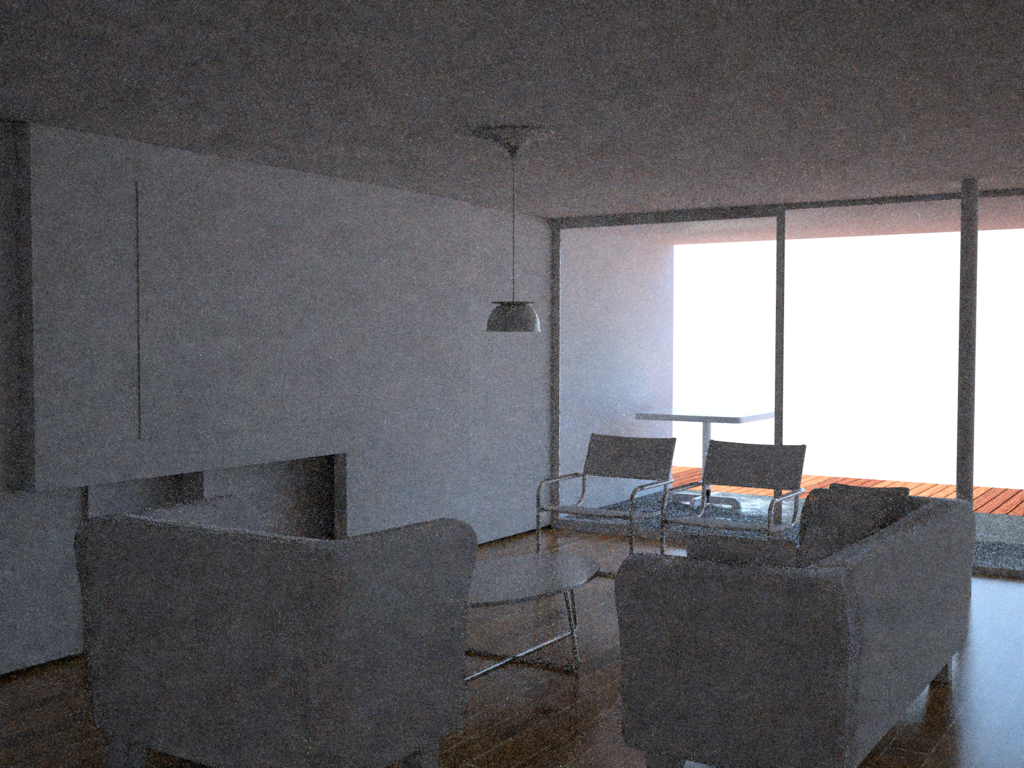

Last night I got a result where the sun is not so strong, but is too weak! But I tried no more, I made a render in Vray went to sleep and left the Indigo rendering the scene.
I'll try a few times and if I get a good result I say here.
Thanks for all information!

PureSpider · Post by **PureSpider** » Sun Nov 30, 2008 2:42 am

Actually give your sun a direction for lighting up the room (shining throu the window)

Kram1032 · Post by **Kram1032** » Sun Nov 30, 2008 11:29 pm

Yeah, that'll be a lot faster

Simply try the newest Indigoversion (1.1.4, currently) and the newest exporter (1.1.3 for Blendigo). You'll find some nice options in the GUI with one being the layer lights.

Borgleader · Post by **Borgleader** » Mon Dec 01, 2008 4:13 am

Kram1032 wrote:Yeah, that'll be a lot faster

Simply try the newest Indigoversion (1.1.4, currently) and the newest exporter (1.1.3 for Blendigo). You'll find some nice options in the GUI with one being the layer lights.

I cant find light layers in Blendigo 1.1.13

Kram1032 · Post by **Kram1032** » Mon Dec 01, 2008 5:09 am

Well, layer 0 is already active, anyway. you already can control sun.

Borgleader · Post by **Borgleader** » Mon Dec 01, 2008 10:38 am

Kram1032 wrote:Well, layer 0 is already active, anyway. you already can control sun.

Yeah but I mean, you cant use multiple ones.

PureSpider · Post by **PureSpider** » Mon Dec 01, 2008 11:49 am

Actually Indigo is able to, go complain to your blendigo writer about that blendigo isnt yet

Borgleader · Post by **Borgleader** » Mon Dec 01, 2008 12:07 pm

PureSpider wrote:Actually Indigo is able to, go complain to your blendigo writer about that blendigo isnt yet

I know. But I don't want to bother Smartden too much. He's already doing great with Blendigo and he works hard to fix the bugs. We'll get light layers when he gets there.

Kram1032 · Post by **Kram1032** » Mon Dec 01, 2008 12:25 pm

He actually said, next release will have it in...

Borgleader · Post by **Borgleader** » Mon Dec 01, 2008 12:41 pm

Kram1032 wrote:He actually said, next release will have it in...

Must've missed that post...or i forgot about it...
