SSS Dragon

[u3dreal]

Hi radiance could you post the material as i donÄt seem to get it to work with ior other than 1.0 ...

cheers

u3dreal

[u3dreal]

Strange i got all the values wired in Blender...

think it will take some time to get some decent implementation..

seems for me i'm getting slower with high ior..

will check ..

thanks alot !!

cheers

u3dreal

[arneoog]

That is just so damn nice!
Awsome Material!!!

But, Radiance, we're in 2007 now

[CTZn]

Awsome Material!!!

Oh yes !

[atmmatt]

*Drools*

[BZ Win]

Gosh, where does everyone get that dragon model?

BTW, very cool looking, my mom thought it was a photo.



EDIT: NVM, found it.

[afecelis]

Amazing! cool sex toy material, hehehehe Like the one Duber Studio published here, For Final render Stage 1:
http://www.duber.cz/index.php?section=t ... set_02.php

[Maluminas]

Your dragon is simply beautiful. SSS makes anything beautiful. Wow, i need to get to work with it

[OnoSendai]

Some general tips for SSS materials:

anything but uniform spectrum type for scattering coefficient spectrum will be heaps slower than uniform. However, the absorption coefficient spectrum can be RGB with no loss of speed tho. So I suggest you give colour to your scattering by messing with the absorption RGB.

Increased the scattering coefficient will result in a greater 'SSS effect', but will slow the rendering speed.

Increasing the absorption coefficient will speed the rendering ( i think),
and make the material look denser as well.

I suggest keeping the absorption coefficient values similar to the scattering coefficient values, *unless* you're going for a milky look, where there is very little absorption.

Using a glossy_transmitter material instead of a specular material on the surface may help in acheiving a more SSS look as well.

The IOR of your SSS medium should be something like 1.5 to be physically plausible.

EDIT: copied this into a new thread in the general section.

[OnoSendai]

Here's a WIP:


and the material:

Code: Select all

	<medium>
		<name>rubber</name>

		<ior>1.5</ior>
			<cauchy_b_coeff>0.0</cauchy_b_coeff>
			<absorption_coefficient_spectrum>
				<rgb>
					<rgb>400 100 400</rgb>
				</rgb>
			</absorption_coefficient_spectrum>
			<precedence>20</precedence>

			<subsurface_scattering>
				<scattering_coefficient_spectrum>
					<uniform>
						<value>100</value>
					</uniform>
			</scattering_coefficient_spectrum>
			<phase_function>
				<uniform/>
			</phase_function>
		</subsurface_scattering>
	</medium>

   <material>
      <name>default</name>

      <specular>
         <transparent>true</transparent>
         <internal_medium_name>rubber</internal_medium_name>
      </specular>

   </material>

Not quite the look i was going for (jade), but quite interesting nonetheless.
Probably need more forwards scattering for jade.

EDIT: according to Jensen,
"Most translucent materials
are strongly forward scattering with g > 0:7 (skin for example
has 0:7 < g < 0:9 [Gemert et al. 1989])."

So I guess I know what to code next

[danyolgiax]

I've tryied those materials in indigo 0.7 with some tags adjustments... but none of them are similar at their own image!

It's normal?

Dox

[Kram1032]

Did you use the same scene?

[danyolgiax]

<medium>
<name>sphere</name>
<precedence>10</precedence>
<basic>
<ior>1.2</ior>
<cauchy_b_coeff>0</cauchy_b_coeff>
<absorption_coefficient_spectrum>
<rgb>
<rgb>30 20 0.5</rgb>
</rgb>
</absorption_coefficient_spectrum>
<subsurface_scattering>
<scattering_coefficient_spectrum>
<rgb>
<rgb>100 5 180</rgb>
</rgb>
</scattering_coefficient_spectrum>
<phase_function>
<uniform>40</uniform>
</phase_function>
</subsurface_scattering>
</basic>
</medium>
<material>
<name>sphere</name>
<specular>
<transparent>true</transparent>
<internal_medium_name>sphere</internal_medium_name>
</specular>
</material>

[CTZn]

Subsurface scattering, like absorbtion, is based on distances, so again, size matters (yes I have a problem with scale )

[danyolgiax]

ok... but...

i think this is the same XML of the pink dragon in the first post of this topic...

<medium>
<name>sphere</name>
<precedence>20</precedence>
<basic>
<ior>1.45</ior>
<cauchy_b_coeff>0</cauchy_b_coeff>
<absorption_coefficient_spectrum>
<rgb>
<rgb>2 0 10</rgb>
</rgb>
</absorption_coefficient_spectrum>
<subsurface_scattering>
<scattering_coefficient_spectrum>
<rgb>
<rgb>2 12 1</rgb>
</rgb>
</scattering_coefficient_spectrum>
<phase_function>
<uniform>4</uniform>
</phase_function>
</subsurface_scattering>
</basic>
</medium>
<material>
<name>sphere</name>
<specular>
<transparent>true</transparent>
<internal_medium_name>sphere</internal_medium_name>
</specular>
</material>

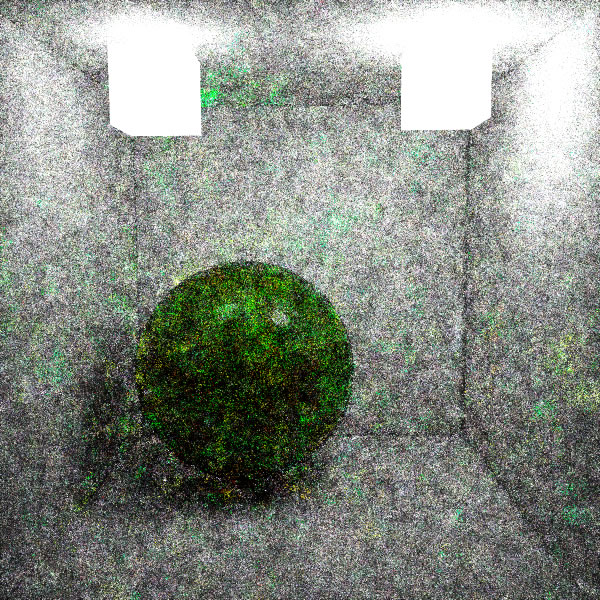

but this is the result:
