Background image and exit portals

[Rich_Art]

Hi All,

I'm just testing all kind of things in Cindigo and now I stumbled upon a problem.
I have a simple room with a window. I want to place an image plane outside so it looks like your looking to a forest or whatever..
When I place an exit portal behind the window all I see is just the sky and the image plane is completely ignored.
How can I solve this?
Do I have to do this in post? is it possible to render out an Alpha?
The C4D compositing tag and Object buffer I can't use with Cindigo...

Peace,
Rich_Art.

[StompinTom]

Unfortunately, using Exit Portals blocks out anything behind them, as they 'become' the background. Looks like something you'll have to do in post. You could use an alpha rendering to composite an image in there, however that doesn't work if you have glass in the window.

[Zom-B]

When I place an exit portal behind the window all I see is just the sky and the image plane is completely ignored.

Yes, thats how EPs work

How can I solve this?

You can model a kind of open Box behind your window to place stuff inside, like for a balcony etc.

Do I have to do this in post? is it possible to render out an Alpha?
The C4D compositing tag and Object buffer I can't use with Cindigo...

Yes, there is a alpha mode in the render modes, check them!
For masks I swap back to C4D internal renderer and render using the Object ID, that works quite well

[Rich_Art]

Thanks for the clarification..

You can model a kind of open Box behind your window to place stuff inside, like for a balcony etc.

But then I can't use the EP's..

For masks I swap back to C4D internal renderer and render using the Object ID, that works quite well

Yes I use that kind of tricks also when rendering with Vray for example.

Peace,
Rich_Art.

[Zom-B]

But then I can't use the EP's..

You lack in fantasy my friend

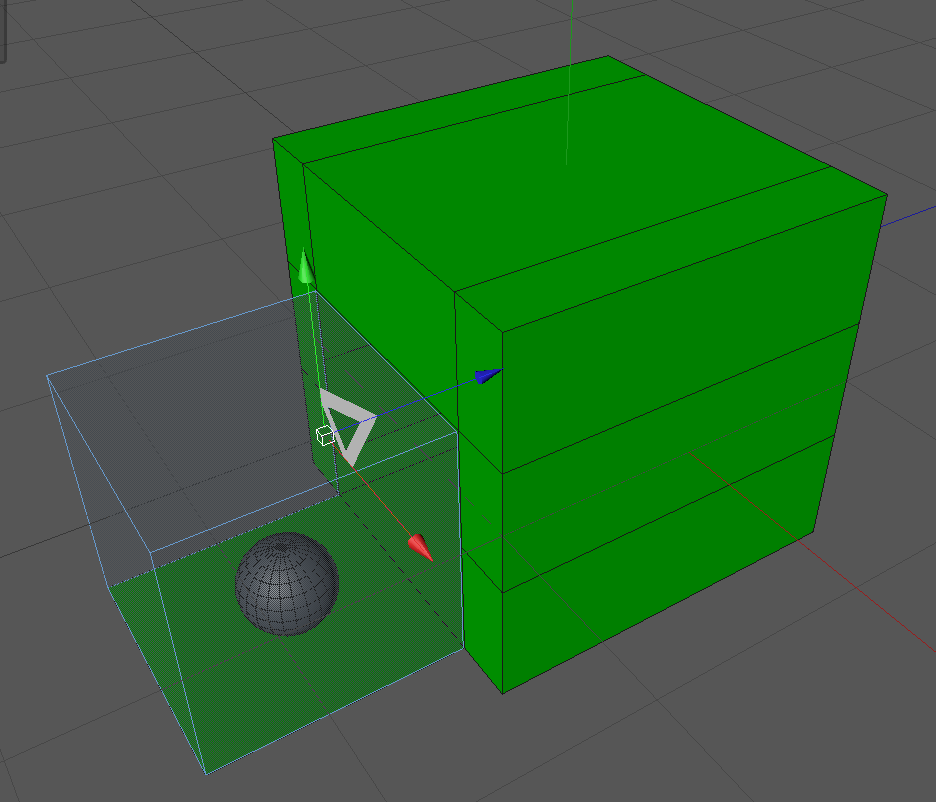

Se attached example of a terrace, the transparent mesh is asignt with a EP Tag, there is NO reason why EPs should be planes only

[Rich_Art]

You lack in fantasy my friend

LoL... I think you're wrong there..
But I see the point.... Will try that.. Never thought you could use the EP's that way..

Peace,
Rich_Art.
