Indigo 1.0.4

[Kram1032]

for dirt => for blurrier lines and imperfections on the lens^^ (and I think, the lensshape itself also gets controlled by this )

Just try to set a very high f-stop

[Anthony]

High F-Stop gets a bigger blur, but I am not getting big streaks coming out the side. Is it cause Im using a blackbody emitter or maybe I just need to do more experiments

I wont bother witht he obstacle map then

[Kram1032]

hi f-stop should make things sharper. But it also should give more bloom.

those "big streaks" aren't too realistic in most cases

Did anyone yet try to film the sun?

[CTZn]

Did anyone yet try to film the sun?

Yes, first thing I did. Actually my diffraction map was unadapted and that was not pretty; the square shape of the map was visible. Of course now I have a better idea on how diffraction map should look

Basically shoting the sun works good.

[Kram1032]

great
Maybe, I still have my amethyst scene, somewhere... Would be great to redo it (maybe even in combination with the atmosphere... The light comes much smoother, then, so there should be a visible difference... And I think, I used full diffuse gold (exponent 0 with au.nk) as a mat and it was a not-energy-loss-compensated version, so, it might also look a lot brighter....)

[psor]

I just thought I've to post this, for people that are not that familiar with
photography at all. More stuff can be found on photographertips.net.



From "Understanding Aperture" - Have fun! ;o))


nb: Also worth to mention: Geoff Lawrence's "Free Digital Photography Tutorial Site"




take care
psor

[Whaat]

* added aperture_diffraction toggle in infile.

In case anyone was wondering, this can be over-ridden by adding

Code: Select all

<aperture_diffraction>false</aperture_diffraction>

in the render settings element. I don't think this has been explicitly mentioned anywhere.

Nice work, Ono! I was a bit confused about obstacle maps at first. Maybe you could post the obstacle map that you used to produce the second glare pattern. 'diffraction_test.igs' does not produce the same glare pattern that you have shown in your first post. I suppose this is due to the lack of obstacle map.

[OnoSendai]

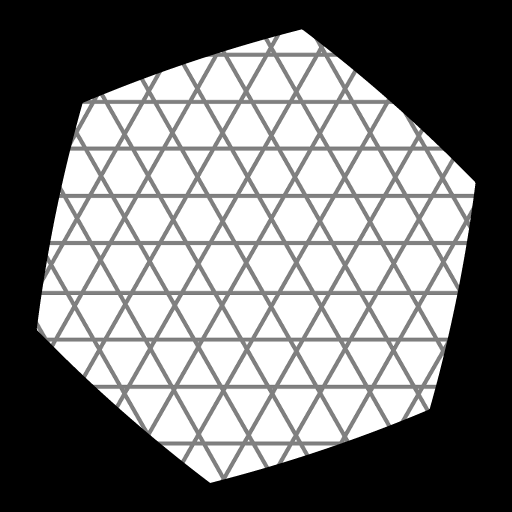

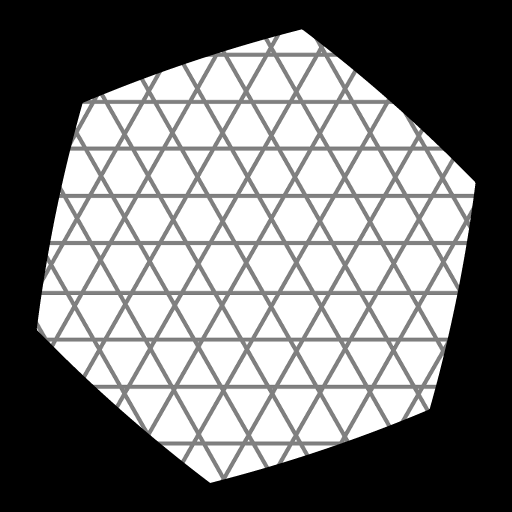

Well this is the combination of aperture + obstacle.
It's the regular nature of the obstacle grid that gives the distinctive glare pattern.

[Kram1032]

if you have a fully white picture, will Indigo interpret this as a perfectly squared aperture at maximum size?

[CTZn]

Fixed, I think. 1.0.4 was running in 1.0.2 folder, I believe that's because I declared msvc dll's from 1.0.2 folder in system path.

I keep having an error, "key 'aperture_diffraction' is not in the map". I've set it to circular, and neither am I using an obstacle map.

Maybe that helps:

Thanks

[CoolColJ]

a bit late to the party - but nixe!

maybe time to dust the cobwebs off my Indigo directory and fire her up

[psor]

"I keep having an error, "key 'aperture_diffraction' is not in the map". I've set it to circular, and neither am I using an obstacle map."

Because you are rendering with the .ini of v1.0.2! That's the point.


take care
psor

[CTZn]

Bwahaha

Edit: never too late when there is a party

[CoolColJ]

only problem with having bloom as part of the render process, is that your stuck with it....

or is it a tonemapping thing like the Camera Responce?

[CTZn]

Sorry that's me again, but upon first test I had the impression that it was pretty much sensible to burn value, easy to set isn't it ? But that need further investigating.
